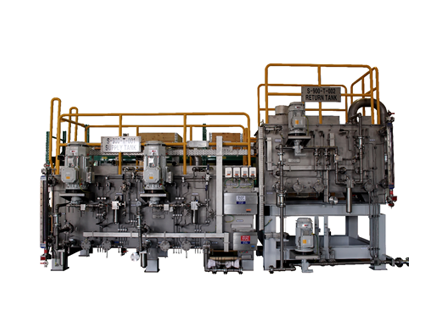

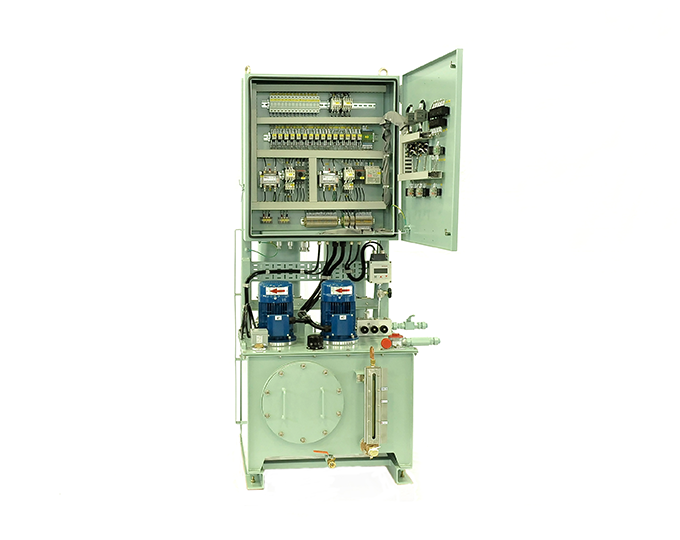

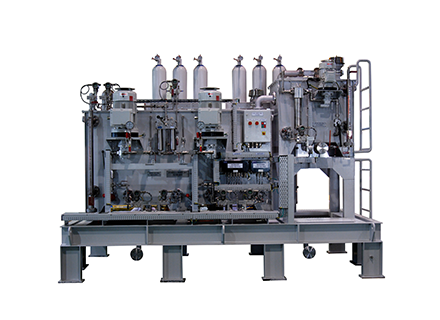

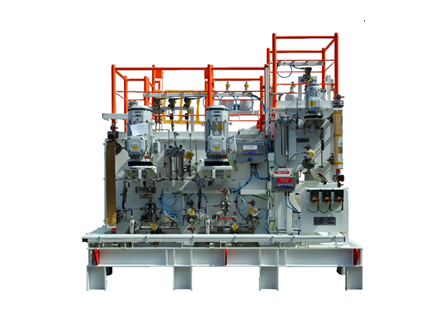

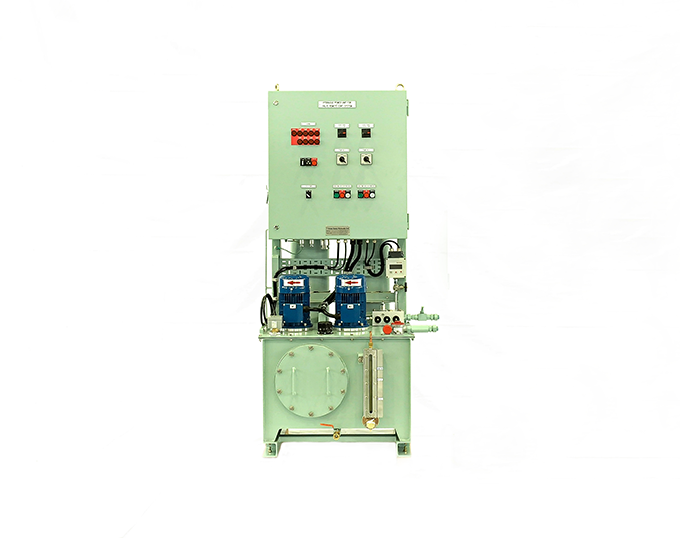

Hydraulic Power Unit (HPU)

The hydraulic power unit with oil reservoir, hydraulic pumps and accumulator unit feeds the system with high pressure oil.
All components are selected to ensure high reliability and low maintenance cost.

We can supply the various type of hydraulic power units upon customer requests.
Various control and monitoring solutions are available, and different back-up/accumulator arrangements can be delivered.

Hydraulic Power Unit

Oil Reservoir	120L~
Working Pressure	135 bar~
Motor/Pump	Duty and Stand-by.

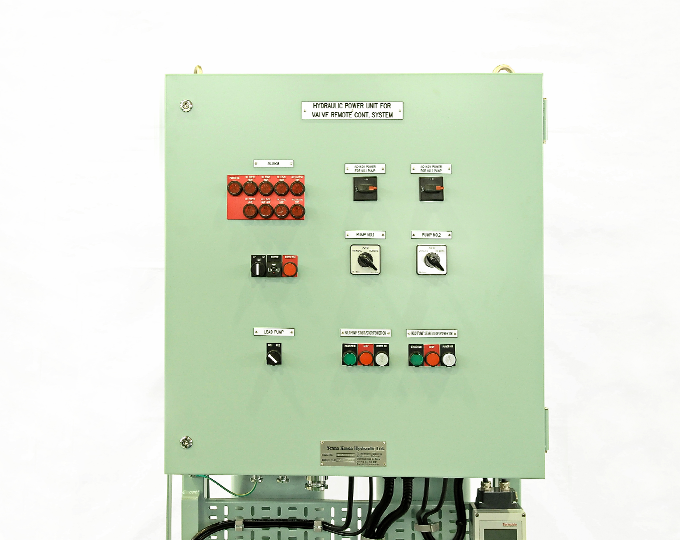

Alarm / Control / Monitoring
Low oil level. Warning Low low oil level. Alarm and shutdown High oil temperature. Warning High high oil temperature. Alarm and shutdown High oil pressure. Warning Low oil pressure. Alarm El. motor fuse tripped. Alarm All warnings and alarms will be reflected in a NC dry contact common alarm

Optional
Remote control panel Serial computer interface, several protocols available Hardwired computer interface Other accumulator sizes and pump sizes on request El. motor fuse tripped. Alarm All warnings and alarms will be reflected in a NC dry contact common alarm
